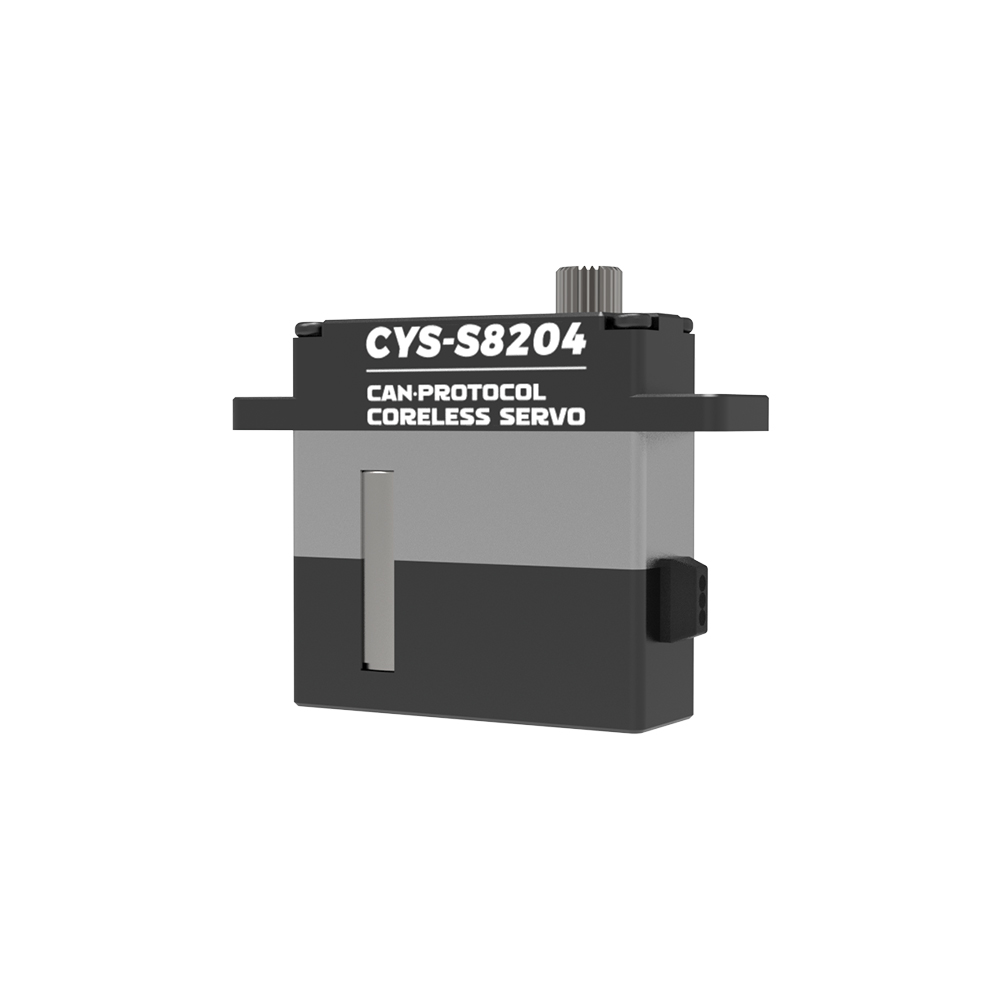

型号: CYS-8204-03
描述： 航模专用数字舵机 10公斤全金属空心杯 CAN总线协议 抗干扰防抖
尺寸: 30*10*33.6mm
扭力 :7Kg.cm ~ 10Kg.cm
速度: 0.1175sec ~ 0.09sec/60 °
电压 : 6.0Volts ~8.4Volts
重量: 27g±1g
| Item No. | CYS-S8204-03 |
| Size | 30*10*33.6mm |
| Weight | 27±1g |
| Operating speed (at no load)@6.0V | 0.11sec/60° |
| Operating speed (at no load)@7.4V | 0.09sec/60° |
| Stall torque @6.0V | 7kg.cm |
| Stall torque @7.4V | 10kg.cm |
| Running current @6.0V | 120mA |
| Running current @7.4V | 120mA |
| Stall current @6.0V | 2.8A |
| Stall current @7.4V | 3.3A |
| Idle Current | 15mA |
| Connector wire length | 180±5mm |
| Operating Voltage Range | 6.0～8.4V |
