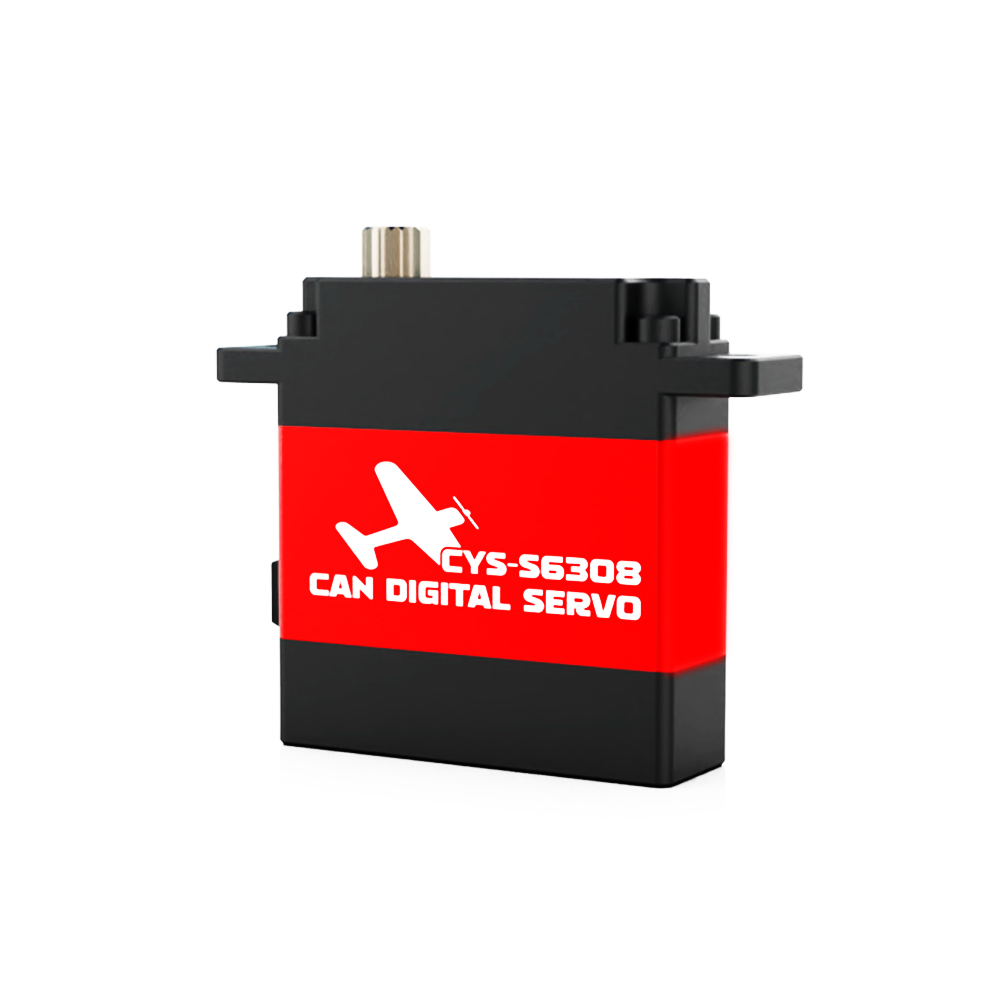

型号: CYS-S6308
描述： 9.3KG 全金属外壳空心杯数字舵机，配备 CAN 协议防水钢齿轮总线，适用于无人机 RC 零件及配件。
尺寸: 31*10*33.1mm
扭力 :7Kg.cm ~9.3Kg.cm
速度: 0.09sec ~ 0.064sec/60 °
电压 : 6.0Volts ~8.4Volts
重量: 27.5g±2g
| Item No. | CYS-S6308 |
| Size | 31*10*33.1mm |
| Weight | 27.5±2g |
| Operating speed (at no load)@6.0V | 0.09sec/60° |
| Operating speed (at no load)@8.4V | 0.064sec/60° |
| Stall torque @6.0V | 7kg.cm |
| Stall torque @8.4V | 9.3kg.cm |
| Running current @6.0V | 200mA |
| Running current @8.4V | 200mA |
| Stall current @6.0V | 3A |
| Stall current @8.4V | 3.7A |
| Idle Current | 10mA |
| Connector wire length | 140±5mm |
| Operating Voltage Range | 6.0V～8.4V |
