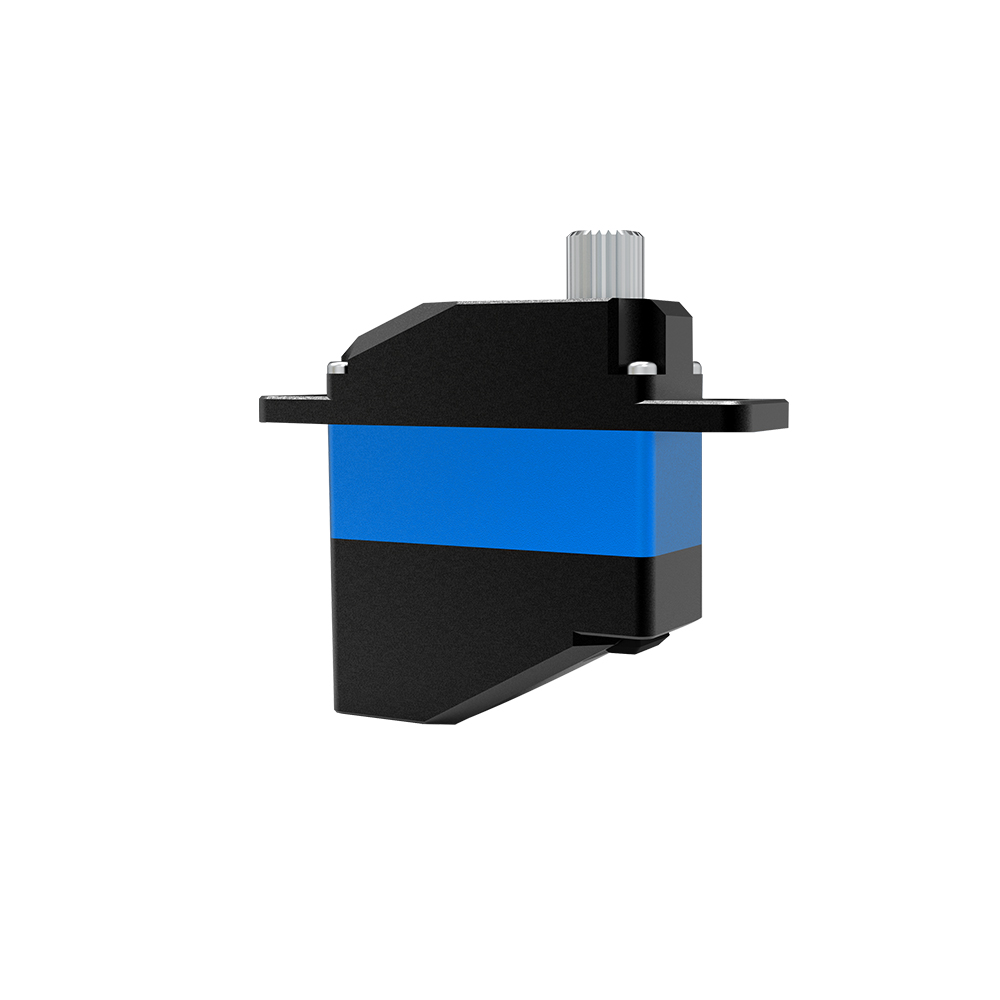

型号: CYS-S6208
描述： 7Kg全金属齿轮 14±1克空心杯数字舵机
尺寸:24*8.5*27.1mm
扭力 :5Kg.cm ~ 7Kg.cm
速度: 0.13sec ~ 0.09sec/60 °
电压 : 6.0Volts ~8.4Volts
重量: 14g±1g
| Item No. | CYS-S6208 |
| Size | 24*8.5*27.1mm |
| Weight | 14±1g |
| Operating speed (at no load)@6.0V | 0.13sec/60° |
| Operating speed (at no load)@8.4V | 0.09sec/60° |
| Stall torque @6.0V | 5kg.cm |
| Stall torque @8.4V | 7kg.cm |
| Running current @6.0V | 60mA |
| Running current @8.4V | 60mA |
| Stall current @6.0V | 1.4A |
| Stall current @8.4V | 1.8A |
| Idle Current | 10mA |
| Connector wire length | 150±5mm |
| Operating Voltage Range | 6.0～8.4V |
